Gaging Systems
Custom Gaging Systems
S G Automation provides complete Gaging Solutions for measuring with tight tolerances. We customize our Gaging Systems for any measurement needs including full turnkey systems. Our Gaging and Automation experts can put together a complete turnkey solution to provide a complete system as a one stop solution for all your gaging needs. We design and build gages for variety of applications like concentricity, profile dimensions and gages to check variety of features and feature sizes. We can provide conceptual design sketches and design & build quotes for your custom gaging needs.
Our gaging systems can be broadly categorized into two.
1. Vision Based Gaging Systems
2. Mechanical Gaging systems
Our gaging systems can be broadly categorized into two.
1. Vision Based Gaging Systems
2. Mechanical Gaging systems
Vision Based Gaging Systems
These are used for low precision measurement and feature detection of parts. Below are some examples
1. Optical Measurement
2. Surface defect inspection.
3. Determining Object Orientation.
4. Shapes / Profile detection and verification.
1. Optical Measurement
2. Surface defect inspection.
3. Determining Object Orientation.
4. Shapes / Profile detection and verification.

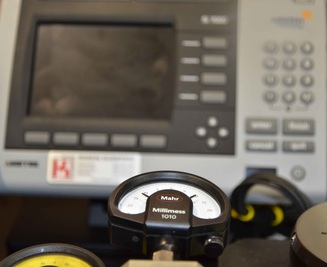

Mechanical Gaging Systems
Mechanical Gaging Systems are used for precision measurements. The gaging systems range from simple bench top station to multi featured measuring machines with SPC and data collection. The features include electronic measuring systems, data collection systems and Statistical Process Control Systems. We can combine inspection and measurement together to provide a complete automated solution.
Features & Benefits
- Our gage makers are all trained in the latest applications and interpretations of the Geometric Dimensioning & Tolerance Standards.
- We can provide third party certifications for all our gaging systems.
- We can provide Gage Repeatability and Reproducibility (G R & R) reports so that our customers are confident about their process capability
- We combine our expertise in Automation and Gage making to provide a turnkey solution to meet all your inspection and measurement needs.
